FEATURES
HIGHEST AVAILABILITY

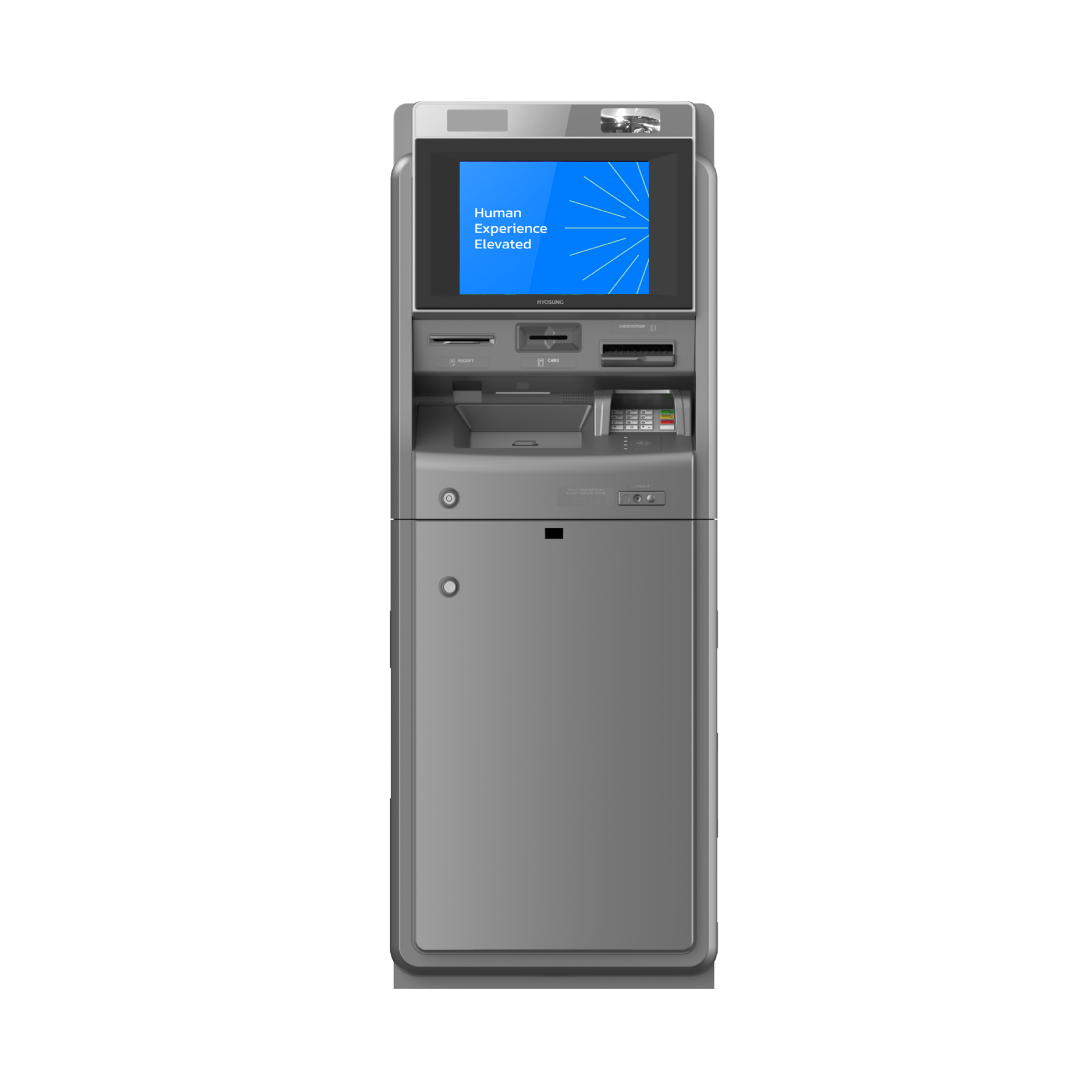

The Hyosung 8LA offers the largest recycling-capable cassette in the industry with advanced multi-check function. Its high capacity and modular design provides this ATM with its industry-leading availability and customization opportunities. The 8LA provides reliability that is unequaled in the market, while also ensuring minimum maintenance and maximum uptime.
MAXIMUM EFFICIENCY
The 8LA is engineered to be the best enabler for efficient branch cash management. With our unique transit cassette option, financial institution can greatly improve not only their cash security but also efficiency when handling cash within the branch. The addition of self-auditing capabilities are also available which operate without any direct human intervention or safe opening.
ENHANCED VERSATILITY
The 8LA allows for up to 90% of all teller transactions through superior self-service functions and core integration technology. This provides branch personnel with more time to interact with customers and improve the overall banking experience. Operating a 24/7 assisted self-service channel has never been easier with this powerful video assistance solutions.
Full Specifications
- Height : 1435.5mm (56.5”) (to tophat)
- Width : 530.0mm (20.9”)
- Depth : 1194.2mm (47.0”)
- Weight: 700kg (1,543.2 lbs)
- Temperature: 0ºC ~ 40ºC (32ºF ~ 104ºF)
- Humidity: 25% – 85%
- Microsoft Windows® 10
- BlueVerse™XFS
- 15” high visibility touch screen (19” or 21” option)
- PIN Pad – PCI compliant
- ADA audio guidance – earphone jack
- Card reader
- EMV compliant
- Anti-skimming, anti-shimming (option)
- Contactless card reader
- Integrated NFC reader via card, smartphone or smartwatch
- Web camera
- includes video camera and microphone (option)
- Cash recycler
- Up to 4 recycling and 1 deposit cassettes
- Recycles up to 4 denominations
- 314mm per recycling cassette note capacity (314mm in the deposit cassette)
- Check In Module (CSM)
- Bundle check deposit
- 30 checks per bundle insert
- 178mm check capacity
- Safe: UL291 Level 1 (CEN option)
- Alarm: Seismic + Heat
- Sensor: Safety door sensor
- Security – Terminal block for easy security connections
- Security camera
- Front access
- Rear access
- State of health indicators across all modules
- 3.1” graphical thermal receipt printer
- AC 100V~127V±10%, 200V~240V±10% 50/60Hz
- Backup battery (option)
- Securely moves cash within the branch or among different locations
- External transit cassette (314mm recycling cassette note capacity)
- Interchangeable with other Hyosung cash recyclers and branch transformation units
- Palm vein scanner (option)
- ID scanner (option)
