FEATURES
Small Footprint Design

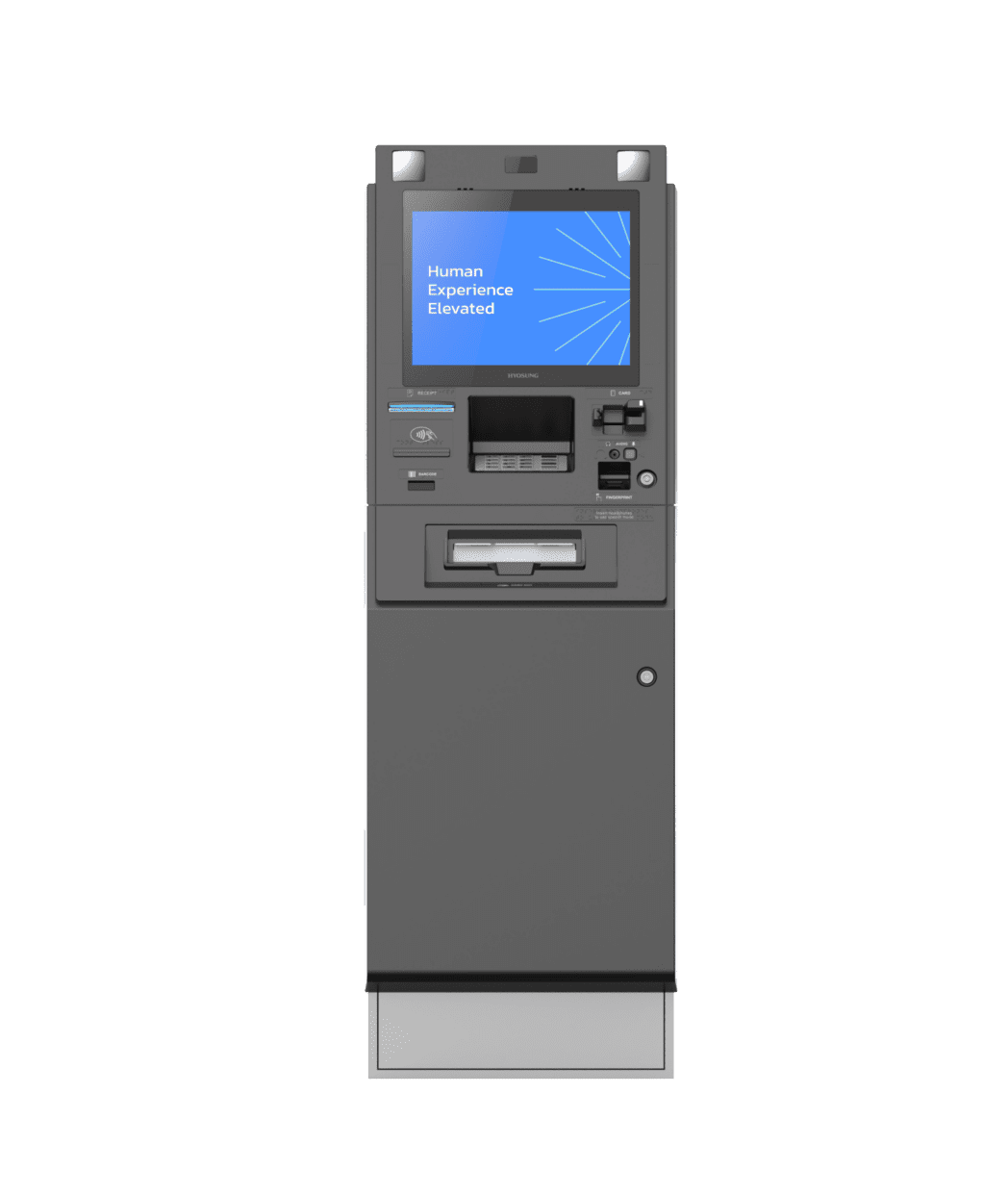

The Hyosung 5XL is designed to be seamlessly installed in any branch layout or location. It’s compact form and sleek design makes it the perfect ATM installation for any business.
Simplified Engineering
The efficient design ensures superior quality and maintenance. By streamlining the build and manufacturing, the 5XL experiences fewer faults while making routine maintenance a simple task.
Greater Availability
In addition to easier and quicker maintenance, the 5XL comes equipped with numerous large cash cassettes that enable longer operation and fewer refills, all which drastically improve overall availability of the ATM.
Robust Security
The Hyosung 5XL comes with a number of our latest security features to protect both the cash inside the safe, as well as customers’ information.
Full Specifications
- Height: 1,313mm (51.7“)
- Width: 430mm (16.9“)
- Depth: 728mm (28.7“)
- Weight: 282kg (621 lbs)
- Temperature : 0°C ~ 40°C (32°F ~ 104°F)
- Humidity 25% ~ 85%
- Microsoft Windows® Platform
- Hyosung BlueVerse™ XFS
- 15” Touchscreen
- 4×2 Function keys (optional)
- Card reader (Dip or Motorized)
- EMV compliant
- Encrypted Pin Pad (PCI compliant)
- Contactless card reader
- Audio jack
- Fingerprint scanner (optional)
- Barcode reader (optional)
- Cash Dispenser
- Maximum fill level 334mm per cassette
- Configurable denomination
- Up to 4 cassettes
- Reject and retract capability
- Dispense up to 50 notes per transaction*
- Dispense speed: 5 notes/sec
- Automatic shutter
- Safe: UL291 Level 1
- Lock: Electronic lock, Mechanical combination lock
- Sensor: Alarm (Heat & Seismic), Door sensors
- Anti-skimming, Anti-shimming, Anti-cash trapping, Anti-card trapping
- Security camera (Face & Hand)
- Front Access
- State of health indicators for all modules
- Receipt printer: graphical thermal
- E-journal printer or direct thermal line
- AC 100 ~240V± 10% / Max 8.0A
