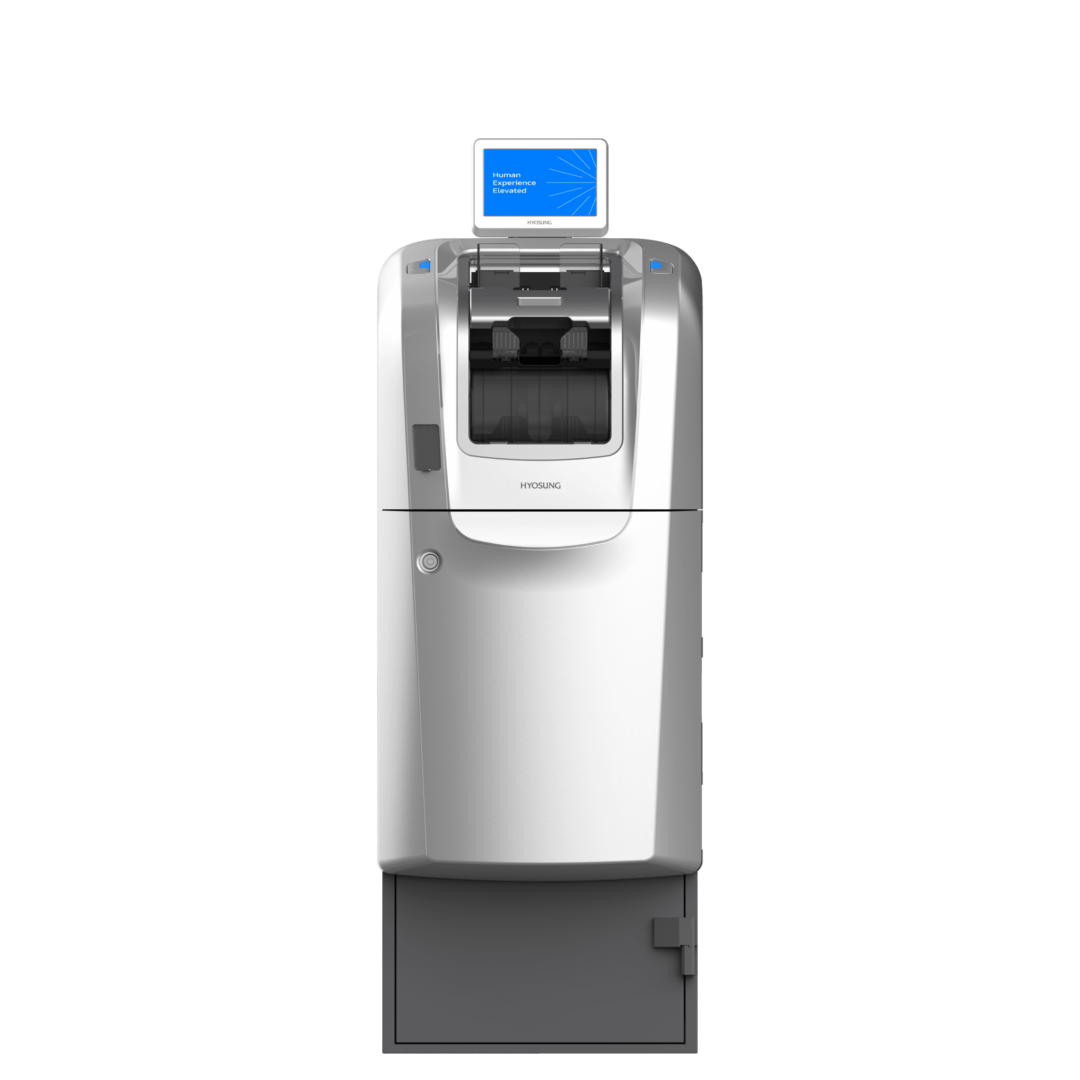

FEATURES
SECURE CASH
Our external transit cassette dramatically reduces cash exposure and is interchangeable with other Hyosung products. Tellers can load and remove cash from the recycler without opening the safe, securely transfer cash in the branch, the cassettes are easy to repair, operate and replace.
HIGH CAPACITY
Total capacity of over 14,000 notes and recycling capacity of 12,000 notes.* The stacking, recycling cassette technology is configurable to meet your unique needs.
CASH COUNT
Equipped with a built-in currency counter, making quick cash counts easy.
SELF-AUDIT
Say goodbye to time-consuming hand counting with Hyosung’s accurate and quick audit software. The MS500 can self-audit without exposing cash, contains single denomination audit, the self-audit takes only minutes and can be run at the best time for the teller and the branch.
Full Specifications
- Height: 920.0mm (36.22”)
- Width: 428.0mm (16.85”)
- Depth: 1,003.3mm (34.29”)
- Weight: 440.5kg (970 lbs)
- Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Humidity: 25% ~ 85%
- Microsoft Windows® 10
- 7” wide LCD with touch screen
- Display unit status, note counting, and guidance messages
- Error and jamming point display
- Continuous feed input module, Individual dispense and reject slots – 200-Note dispense slot – 30-Note reject slot
- Cash handling speed
- Deposit – 12 notes per second
- Dispense – 12 notes per second
- Note counting only – 20 notes per second
- 6 recycling cassettes plus 1 overflow cassette
- 3 Large-size recycling cassettes (295mm per cassette note capacity)*
- 3 Small-size recycling cassettes (100mm per cassette note capacity)*
- 1 Large-size overflow cassette (295mm note capacity)*
- Self-audit capability
- Safe: UL291 Level 1
- Front access
- Securely moves cash within the branch or among different locations – External transit cassette (295mm note capacity)* – Interchangeable with other Hyosung teller cash recyclers and branch transformation units
- Communication – TCP/IP
- In-use button
- Counting feature – With note validation – Without note validation
- Note serial number recognition
- Fitness sorting
- Multi-channel communications
