FEATURES
VERSATILITY

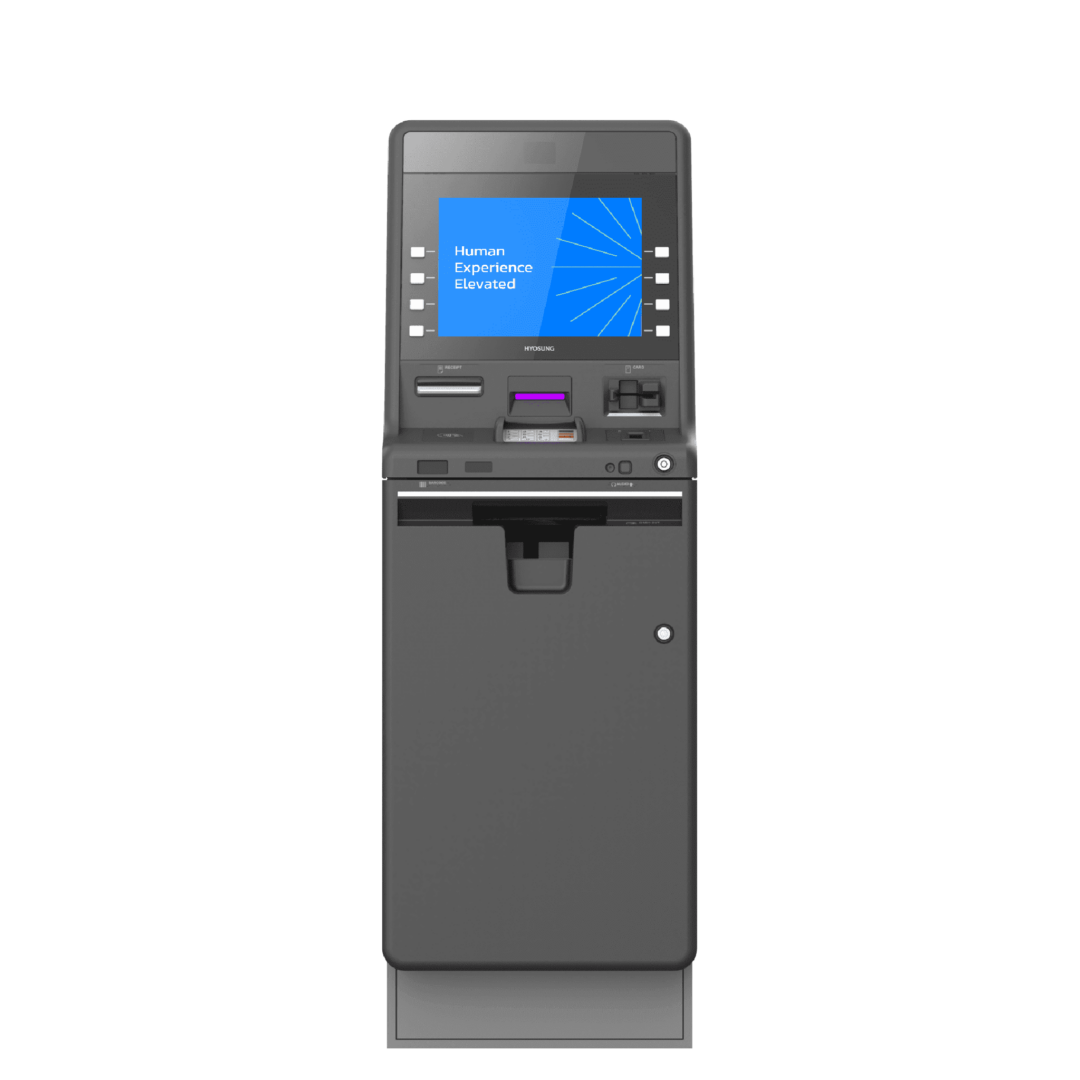

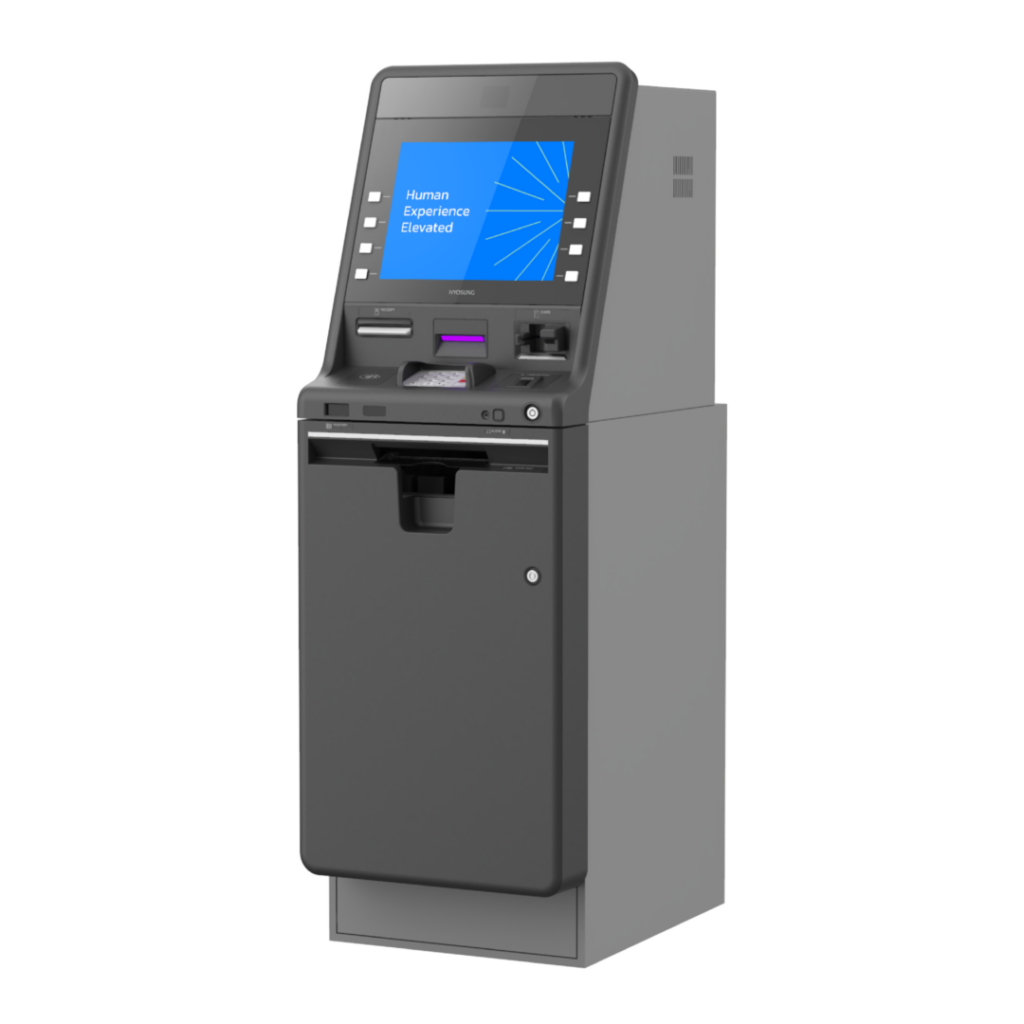

This new cash dispenser unit provides spray dispense/bill presentation along with auto recovery capability.
Supporting both WinCE and Win10 platforms, the Hero offers a wide range of transactions capabilities and with the option to increase cash capacity, and is a fantastic fit for both Retail and Financial deployments. This device has optional 1,000 note (1k) one cassette CDU option to up to four 2,000 note (8k) cassettes for a maximum capacity.
INTUITIVE DESIGN
The Hero features a user-friendly interface displayed on a vivid 15” infinity screen with a sleek, dark grey color scheme. A service friendly design features with easy to reach power outlets and a vault light to help with loading cash in low-light venues.
SECURITY
Robust security features to defend against physical and logical attacks including a combination of multi-level anti-skimming protections, locked down operating systems, white-listing, and encryption.
Enhanced physical protections including a redesigned safe door and an optional UL291 L1 rated safe. Mindful of a post pandemic environment, the Hero has a variety of antimicrobial features including ultra-violet lighting. The EPP and cash tray defend from bacteria via a violet blue light.
Full Specifications
- Safe – UL291 business hour, UL291 level 1 (optional)
- Locking Device – Electronic safe lock, Kaba mas cencon (optional)
- Security camera (face) · USB camera
- Temperature: 32°F – 104°F (0°C ~ 40°C)
- Humidity 25% – 85%
- Height: 1440mm (56.7”)
- Width: 450mm (17.71”)
- Depth: 640mm (25.2”)
- Weight: 279.9 kg (617lbs)
- Spray type cash dispenser
- 2,000 notes cassette (up to 4)
- Auto-recovery CDU
- Windows CE Version
- Microsoft Windows® CE 7.0
- Windows 10 Version
- 3.1” graphical thermal receipt printer
- 15” TFT LCD display (Windows CE version)
- 15” touchscreen (Windows 10 version)
- PIN Pad – PCI compliant · Contactless – Integrated reader (via card, smartphone or smartwatch) (optional)
- ADA audio guidance – earphone jack
- Card Reader – DIP hybrid, EMV level 1,2 compliant, anti-skimming (optional), anti-skimming card reader (optional)
- Lock type – no dial lock
- AC 100V
- Windows CE Version
- Communication – TCP/IP
- Supports 6 languages: English, Spanish, French, Japanese, Chinese, & Korean
- Enhanced standard 1 emulation
- Dynamic currency conversion (DCC)
- Decimal point percentage surcharge
- Communication – TCP/IP · Barcode (optional)
- Windows 10 Version
- All above features
- Denomination selection
- Customizable screens via NBS software
Related Products
Force (MX2800SE)
One of our most popular retail ATMs; the Force offers an improved UL 291 business hours or Level 1 safe with added break-in protection, an EMV card reader, a PCI 5.0 compliant keypad and secure communications protection to provide the most convenient and secure in-store cash withdrawal transactions.

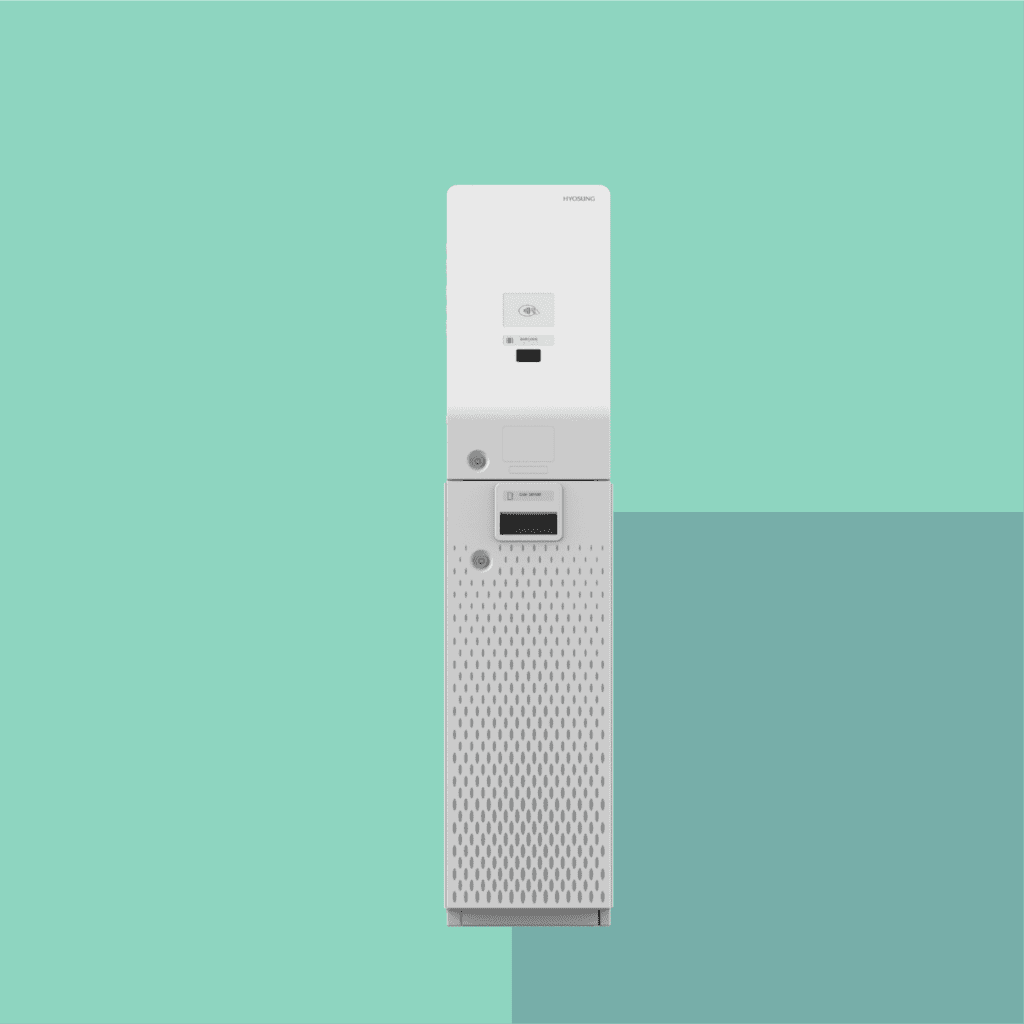

X10 Sidecar
