FEATURES
SECURE CASH
Our external transit cassette dramatically reduces cash exposure and is interchangeable with other Hyosung products. Tellers can load and remove cash from the recycler without opening the safe, providing secure transfer of cash throughout the branch. In addition, the cassettes are easy to repair, operate and replace.
HIGH CAPACITY
Total capacity of over 13,000 notes and recycling capacity of over 10,000 notes. The stacking and recycling cassette technology can also be configured to meet each individual branch’s needs
CASH COUNT
Equipped with a built-in currency counter, making it easier to track and manage cash levels.
SELF-AUDIT
Say goodbye to time-consuming manual counting with Hyosung’s accurate and quick audit software. The MS500A can self-audit without exposing cash, can be done for single denominations, and only takes minutes to completed. This speed and convenience allows for device audit at any time that teller or branch desires.
Full Specifications
- Height: 1,808mm (71.2”)
- Width: 446mm (17.6”)
- Depth: 1,253mm (49.3”)
- Weight: 602kg (1,327.2 lbs)Collar:
- Temperature: 5°C ~ 40°C (41°F ~ 104°F)
- Humidity: 25% ~ 85%
- Microsoft Windows® 10
- 15.1” TFT LCD
- Display unit status, note counting, and guidance messages
- Error and jamming point display
- Continuous feed input module, Individual dispense and reject slots
- 200 notes per dispense transaction
- 30 notes per reject
- Cash handling speed
- Deposit – 12 notes per second
- Dispense – 12 notes per second
- Note counting only – 20 notes per second
- 6 recycling cassettes plus 1 overflow cassette
- 3 Large-size recycling cassettes (295mm per cassette note capacity)
- 3 Small-size recycling cassettes (100mm per cassette note capacity)
- 1 Large-size overflow cassette (295mm note capacity)*
- Self-audit capability
- Safe: UL291 Level 1
- Rear access
- Securely moves cash within the branch or among different locations
- External transit cassette (295mm note capacity)
- Interchangeable with other Hyosung teller cash recyclers and branch transformation units
- Communication – TCP/IP
- In-use button
- Counting feature with note validation
- Note serial number recognition
- Fitness sorting
- Multi-channel communications
Related Products
MS500
The MS500 is a digitally secure, fast and feature-rich cash recycler for financial institutions. The MS500 modular design and high capacity cassettes drive Hyosung’s industry-leading availability and serviceability.

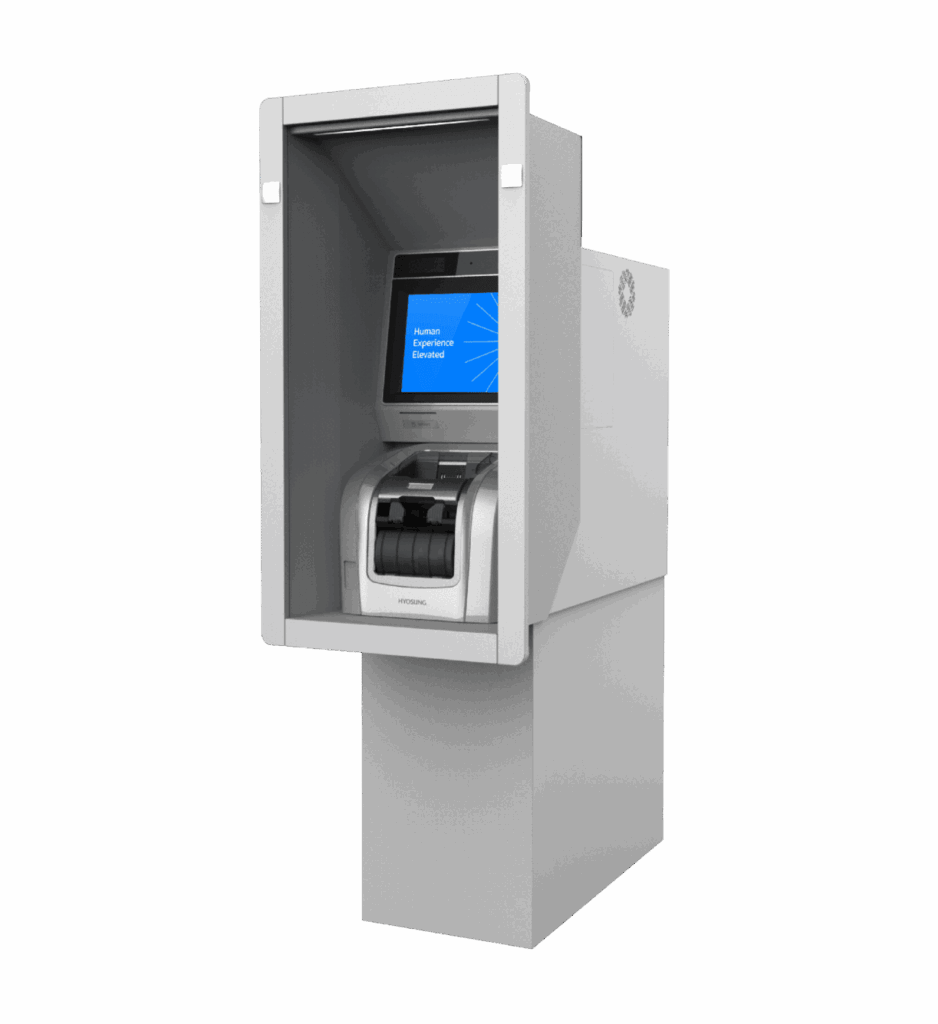

MS500S
The MS500S delivers all of the functionality of the MS500 standard except, in a small package. Features such as transit cassette, self-audit, and continuous feed are all included in this mini powerhouse.

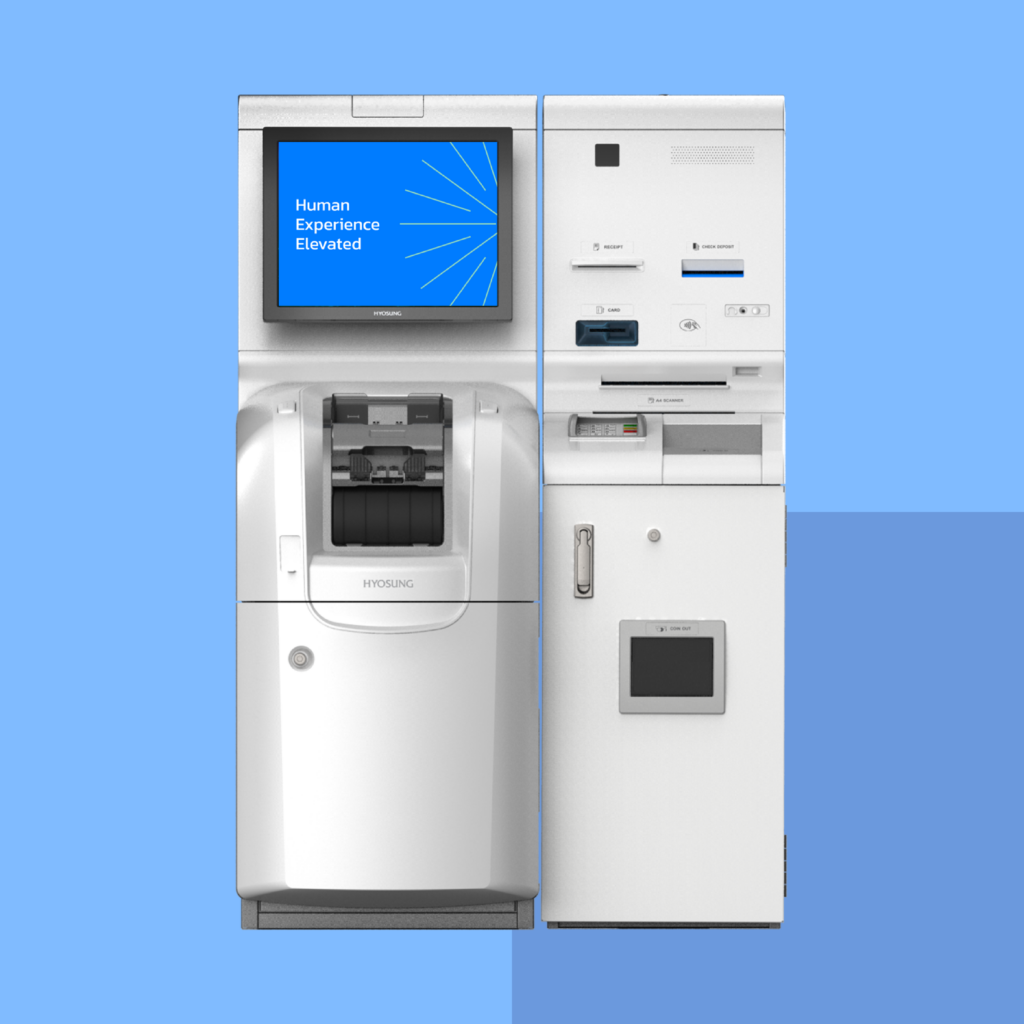

MS500SE
